22F ring power supply normally closed normally open self-locking reset Featured Image
  • 22F ring power supply normally closed normally open self-locking reset

22F ring power supply normally closed normally open self-locking reset

Short Description:

·Product Model: Q22F Ring power lamp.

·Material: 304 stainless steel housing，PA66.

·Electrical  parameters: 5A /250VAC.

·Contact  resistance:≤50Ω.

·Protection level: IP67, IK10, IP40.

·LED  voltage: 3V-220V.

·Service temperature range:-20℃—55℃.

·Lamp bead life:40,000 hours.

·Mechanical life:30 times/min，500,000 times.

·Insulation resistance:≥1000MΩ.




  • :

    • Product Detail

    FAQ

    Product Tags

    Product Characteristics Q22F Ring power lamp

    Flame retardant material
    Security guarantee
    Stainless steel case anti-corrosion and dust-proof
    Embedded PC button
    Silicone waterproof ring
    High performance, strong and reliable

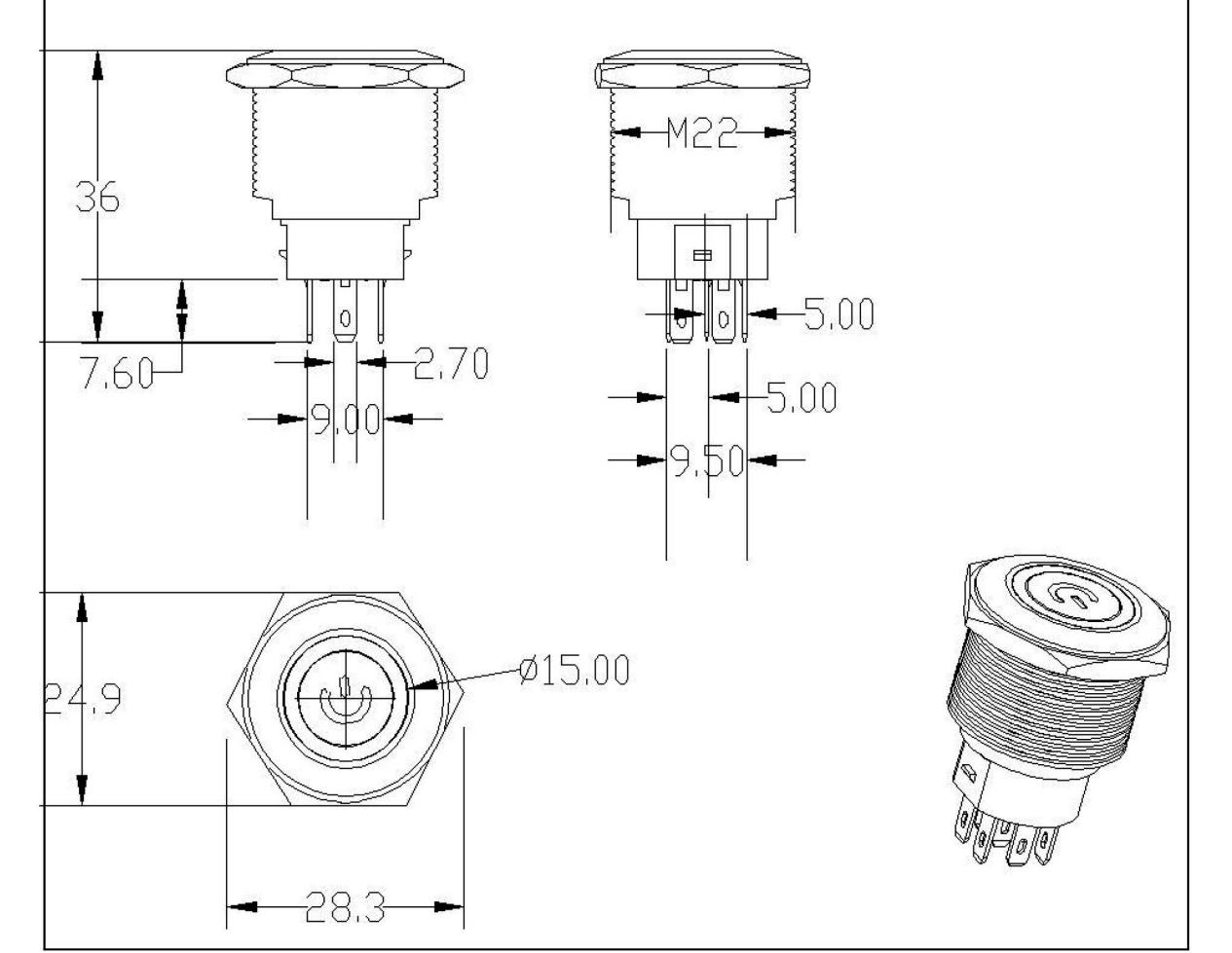

    Product Drawing

    df
    df

    Application Areas

    The products can be used in transportation, household appliances, medical equipment, electronic equipment, bathroom, access control, etc.

    Package picture

    sad
    asd
